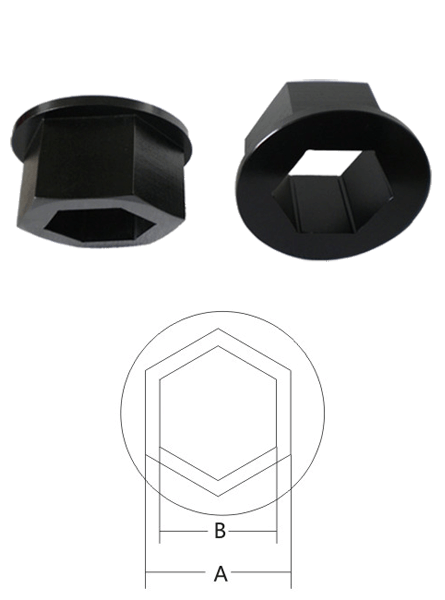

KRD系列中空式液壓扳手過渡套
型號說明：
中空式液壓扳手過渡套是為中空式液壓扳手配套使用。
型號：KRD系列
服務熱線：400-800-7282
產品特性：
◆ 采用高鉻鉬鋼材料制造
◆ 采用標準熱處理過程，終身保用
◆ 可定制各種規格的過渡套
|
扳手型號
|
工作頭型號
|
適用對邊 (mm)
|
過渡套規格型號
|
|||||
|
型 號
|
A/B(mm)
|
型 號
|
A/B(mm)
|
型 號
|
A/B(mm)
|
|||
|
KRD02
|
KRD02A-50
|
50
|
2G5041
|
50/41
|
2G5036
|
50/36
|
2G5032
|
50/32
|
|
KRD02A-46
|
46
|
2G4636
|
46/36
|
2G4632
|
46/32
|
2G4630
|
46/30
|
|
|
KRD02A-41
|
41
|
2G4132
|
41/32
|
2G4130
|
41/30
|
2G4127
|
41/27
|
|
|
KRD02A-36
|
36
|
2G3630
|
36/30
|
2G3627
|
36/27
|
|
|
|
|
KRD02A-32
|
32
|
2G3227
|
32/27
|
|
|
|
|
|
|
KRD02A-30
|
30
|
|
|
|
|
|
|
|
|
KRD02A-27
|
27
|
|
|
|
|
|
|
|
|
KRD05
|
KRD05A-65
|
65
|
5G6555
|
65/55
|
5G6550
|
65/50
|
5G6546
|
56/46
|
|
KRD05A-60
|
60
|
5G6050
|
60/50
|
5G6046
|
60/46
|
5G6041
|
60/41
|
|
|
KRD05A-55
|
55
|
5G5546
|
55/46
|
5G5541
|
55/41
|
5G5536
|
55/36
|
|
|
KRD05A-50
|
50
|
5G5041
|
50/41
|
5G5036
|
50/36
|
5G5032
|
50/32
|
|
|
KRD05A-46
|
46
|
5G4636
|
46/36
|
5G4632
|
46/32
|
5G4630
|
46/30
|
|
|
KRD05A-41
|
41
|
5G4132
|
41/32
|
5G4130
|
41/30
|
5G4127
|
41/27
|
|
|
KRD05A-36
|
36
|
5G3630
|
36/30
|
5G3627
|
36/27
|
|
|
|
|
KRD05A-32
|
32
|
5G3227
|
32/27
|
|
|
|
|
|
|
KRD05A-30
|
30
|
|
|
|
|
|
|
|
|
KRD05A-27
|
27
|
|
|
|
|
|
|
|
|
KRD10
|
KRD10A-90
|
90
|
10G9080
|
90/80
|
10G9075
|
90/75
|
10G9070
|
90/70
|
|
KRD10A-85
|
85
|
10G8575
|
85/75
|
10G8570
|
85/70
|
10G8565
|
85/65
|
|
|
KRD10A-80
|
80
|
10G8070
|
80/70
|
10G8065
|
80/65
|
10G8060
|
80/60
|
|
|
KRD10A-75
|
75
|
10G7565
|
75/65
|
10G7560
|
75/60
|
10G7555
|
75/55
|
|
|
KRD10A-70
|
70
|
10G7060
|
70/60
|
10G7055
|
70/55
|
10G7050
|
70/50
|
|
|
KRD10A-65
|
65
|
10G6555
|
65/55
|
10G6550
|
65/50
|
10G6545
|
65/45
|
|
|
KRD10A-60
|
60
|
10G6050
|
60/50
|
10G6046
|
60/46
|
|
|
|
|
KRD10A-55
|
55
|
10G5546
|
55/46
|
10G5541
|
55/41
|
|
|
|
|
KRD10A-50
|
50
|
|
|
|
|
|
|
|
|
KRD20
|
KRD20A-115
|
115
|
20G115105
|
115/105
|
20G115100
|
115/100
|
20G11595
|
115/95
|
|
KRD20A-110
|
110
|
20G110100
|
110/100
|
20G11095
|
110/95
|
20G11090
|
110/90
|
|
|
KRD20A-105
|
105
|
20G10595
|
105/95
|
20G10590
|
105/90
|
20G10585
|
105/85
|
|
|
KRD20A-100
|
100
|
20G10090
|
100/90
|
20G10085
|
100/85
|
20G10080
|
100/80
|
|
|
KRD20A-95
|
95
|
20G9585
|
95/85
|
20G9580
|
95/80
|
20G9575
|
95/75
|
|
|
KRD20A-90
|
90
|
20G9080
|
90/80
|
20G9075
|
90/75
|
20G9070
|
90/70
|
|
|
KRD20A-85
|
85
|
20G8575
|
85/75
|
20G8570
|
85/70
|
20G8565
|
85/65
|
|
|
KRD20A-80
|
80
|
20G8070
|
80/70
|
20G8065
|
80/65
|
|
|
|
|
KRD20A-75
|
75
|
20G7565
|
75/65
|
|
|
|
|
|
|
KRD20A-70
|
70
|
|
|
|
|
|
|
|
|
KRD20A-65
|
65
|
|
|
|
|
|
|
|
|
KRD40
|
KRD40A-155
|
155
|
40G155145
|
155/145
|
40G155130
|
155/130
|
40G155120
|
155/120
|
|
KRD40A-145
|
145
|
40G145130
|
145/130
|
40G145120
|
145/120
|
40G145115
|
145/115
|
|
|
KRD40A-130
|
130
|
40G130120
|
130/120
|
40G130115
|
130/115
|
40G130110
|
130/110
|
|
|
KRD40A-120
|
120
|
40G120110
|
120/110
|
40G120105
|
120/105
|
40G120100
|
120/100
|
|
|
KRD40A-115
|
115
|
40G115105
|
115/105
|
40G115100
|
115/100
|
40G11595
|
115/95
|
|
|
KRD40A-110
|
110
|
40G110100
|
110/100
|
40G11095
|
100/95
|
40G11090
|
110/90
|
|
|
KRD40A-105
|
105
|
40G10595
|
105/95
|
40G10590
|
105/90
|
40G10590
|
105/90
|
|
|
KRD40A-100
|
100
|
40G10090
|
100/90
|
40G10085
|
100/85
|
40G10080
|
100/80
|
|
|
KRD40A-95
|
95
|
40G9585
|
95/85
|
40G9580
|
95/80
|
|
|
|
|
KRD40A-90
|
90
|
40G9080
|
90/80
|
|
|
|
|
|
|
KRD40A-85
|
85
|
|
|
|
|
|
|
|
|
KRD40A-80
|
80
|
|
|
|
|
|
|
|
